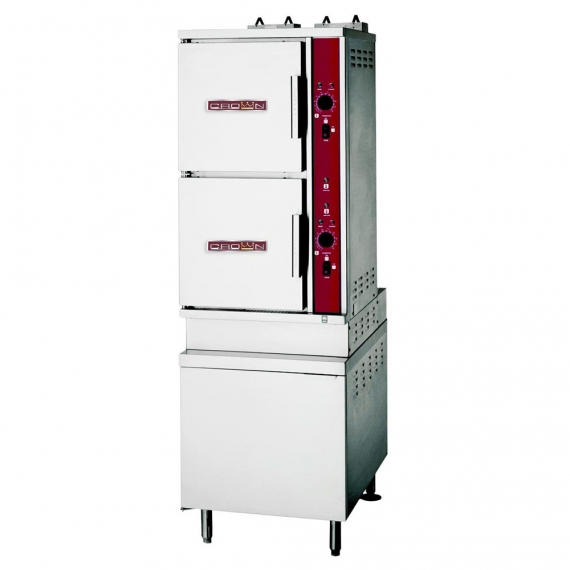

The GSX-7HE, GSX-10HE, and GSX-16HE convection steamers come equipped with individual gas steam generators for each cavity. The GSX-7HE has two compartments: (1) 3-pan and (1) 4-pan; GSX-10HE has two compartments: (2) 5-pans; GCX-16HE has two compartments: (2) 8-pans. The steamer is constructed of satin finish stainless steel type #304. The cooking chamber is a one piece all welded, #316 stainless steel with coved corners. The heavy duty door has an inner liner of stainless steel with a full perimeter gasket seal, an outer liner of one piece all welded stainless steel, and a positive lock and seal mechanism with spring release. Each compartment is provided with removable stainless steel pan supports. A stainless steel drip trough is integrally connected to drain to collect condensate when the doors are opened.

The control housing is constructed of stainless steel with a full access removable panel. Each compartment has individual controls which include an illuminated three way power switch (ON/OFF/Delime), a pilot ready light, a pilot cooking light, an ignition light, a 60-minute electric timer which sounds an audible signal at the end of the cooking cycle, solid state generator controls and electronic ignition for each generator. Steam flow to the cooking chamber shall be cut off when the door is opened and reactivated when the door is closed. Steamers are mounted on a 24” stainless steel cabinet base (GSX-16HE is mounted on a 36” cabinet base) with exterior hinged door and 4 adjustable flanged feet for securing to the floor. The cabinet houses the generator(s), automatic blowdown and drain box.

AGA/CGA Certified and NSF Approved.
